2OH/25H/3OH

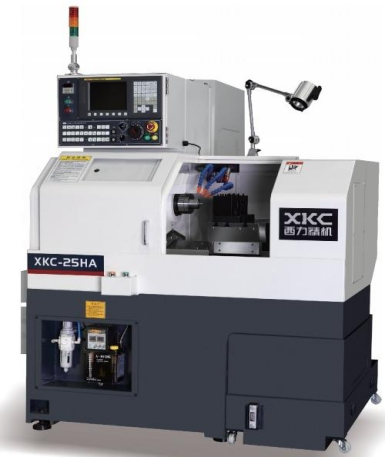

SUPER-SMALL  HIGH PRECISION  CNC  LATHES

High Accuracy Symmetry Spindle:

The lathesuing thestructure of symmetry spindle box and Japan NSK super precision Angular Contact ball bearing, and ensures high rigidity and lasting accuracy, spindle run out is less than 2μm.

Unloading Type Clamping Mechanism:

The double stage clamping cylinder unloading assembly gets  the patent, to extend the life of clamping mechanism. Max. speed of spindle is 6000 rev/min, can be equipped to fulfil fast and efficient automation production.

High Rigidity Bed:

Design of machine Bed goesthrough an analysis of thermal deformation, high quality meehanite cast iron integrated bed; improve the rigidity of the lathe.

Accurate Feeding:

Each feeding axis is driven by servo motors through Japan NSK、THK high precisionball screws. Machining accuracy is ensured and longtime accuracy is remained. Repeatabilityis less than ±1um.

Comb Type Tool Rest:

The unique design of comb typetool rest gives minimum repeatability error during tool change. The widen tool holder plate and chute type tool, extend the range of tool installation.

Guide way Construction:

The latheusing Japan NSK、THK high precision linear ways, enhanced the whole rigid. The linear of feed spindle using full-seal protection, improve the life of the linear.

Electric Cabinet and Cutting Box:

The design of outlay separateness powerful electric cabinet, easy tomaintain, and more safety. Side pull type cool case and chip box on the right side, easy to put in the small space.
