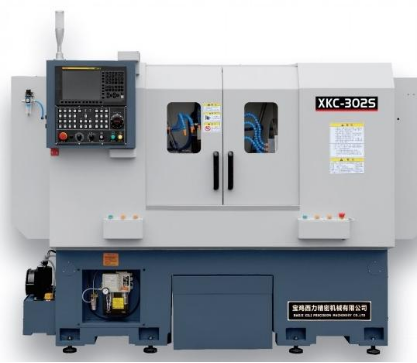

302S

DOUBLE spindle CNC lathe

Double Spindle Structure

The spindle and sub-spindle adopt the built-in electric spindle structure, with high speed, low noise, compact structure and small inertia, which can complete the front and back processing of a part at one time,reduce these quencing link, and easily realize the requirements of automatic production.

High Accuracy Spindle

The spindle and sub-spindle are made of Japanese NSK ultra-high precision angular contact ball bearings to ensure the high rigidity and precision retention of the spindle.

Comb Type Tool Rest

The novel double-row tools holder has a small repeated tool change error, flexible tool loading, high-speed and accurate tool change, and greatly saves processing time.380mm large stroke design, processing diameter below 30, the number of row knives up to 8.

Dual-X-Axis, Dual-Z-Axis Structure

The two X-axis and Z-axis are servo driven respectively, and the interference is small ;It is especially suitable  for  the  automated, continuous and stable processing of large quantities, short shafts and  small disc parts, and is especially suitable for the continuous front and  back of the bar to be processed at one time. It can complete the butt cutting of the main and auxiliary shafts, the synchronous processing of the front and back sides, and the loading of single trusses and robots.

Automatic Conveyer Device

The sub-spindle is designed with a separate material receiving device to collect workpieces without opening the door, completing continuous production and ensuring safety and efficiency.
